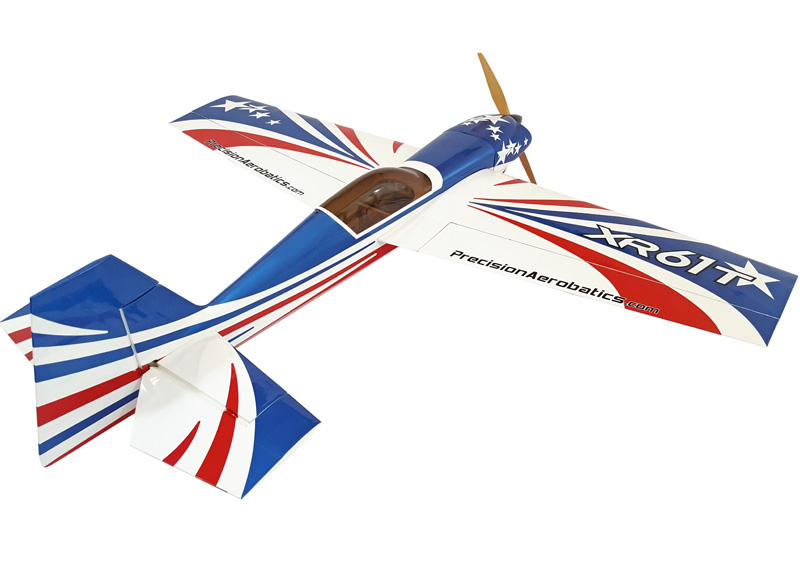

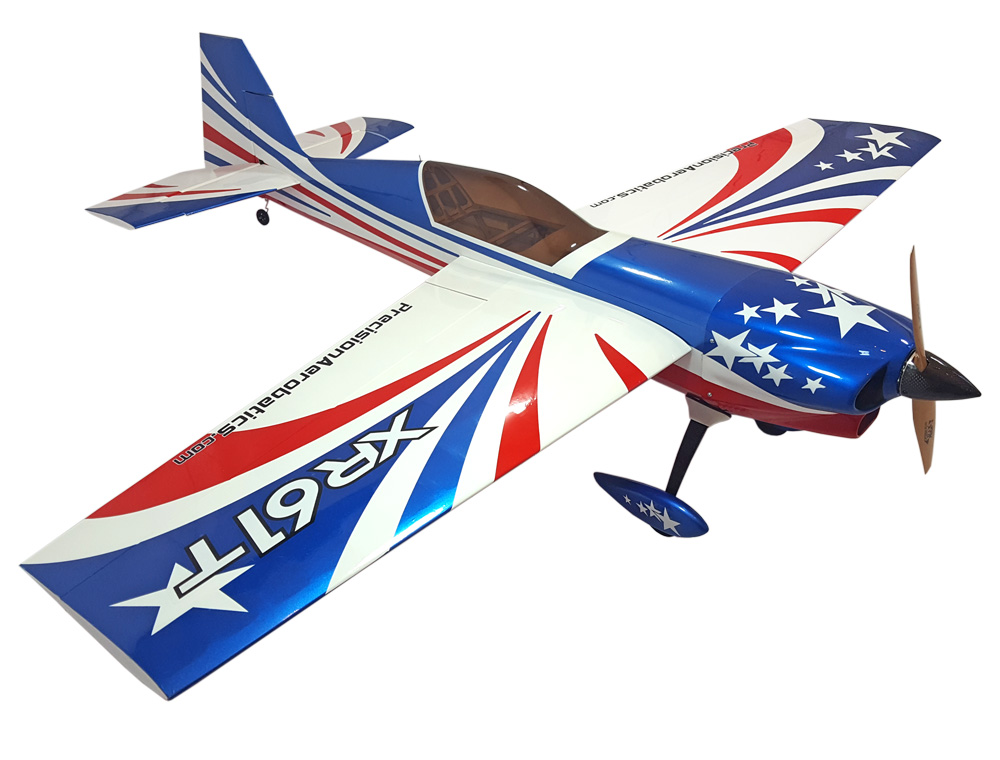

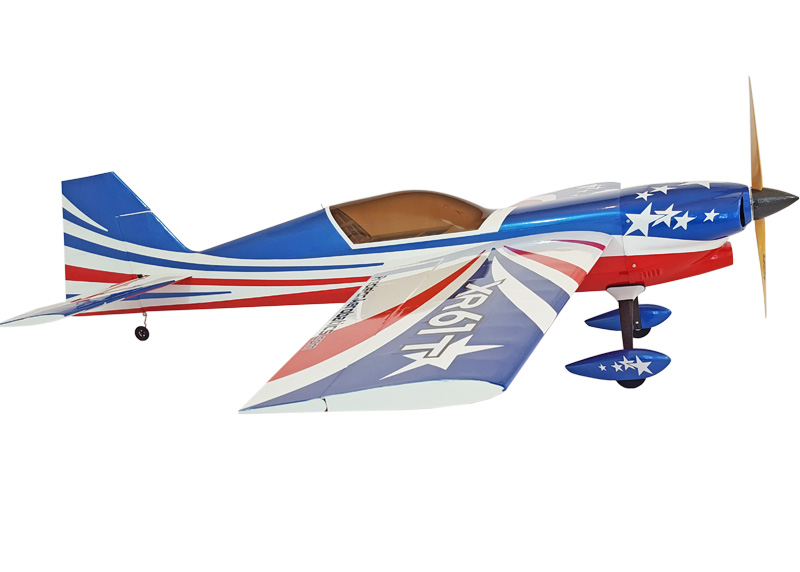

XR-61T ARF

XR-61T ARF

$369.95

Choose your options:

SKU: N/A - Need Help? Contact Us Leave Feedback

Category:

Tags: , , , , , , , ,

Description

Following the recent upgrade to the XR61 iPAs set up, we are excited to release the XR61-T!

This highly popular model just got a new symmetrical (and amazing!) patriotic color scheme and a tandem canopy!  It is not replacing the XR61 (which is in production as usual) but rather an addition to the PA line.

The T in the name stands for Tandem, for those who prefer the looks of the longer, larger canopy. The XR61-T maintains the same flight performance the XR-61 has to offer, plus greater side area for ever better precision maneuvers and knife edge!

The sophisticated aerodynamic design, straight and true factory-build (incidence pre-set) and incredibly powerful set up allowing this plane to perform just like you hope for – be it precision flying or slow 3D!

The XR-61T is powered by a powerful rear-mounted motor (PA Thrust 60 Revo 24 Pole) and precision super torque servos (NXT-200HV) which gives this plane completely new feel in the air!  Even if you owned an XR61 before – this would be a totally new experience. The tremendous upgrade in the iPAs setup, coupled with the larger side area expands the XR61 flight envelope and gives it a whole new style of flying, never seen before in the XR.

Kudos to our very own gifted color-scheme-designer, Malcolm Stiles who created this gorgeous scheme.



To quote PA lead test pilot, Daniel Dominguez –  “On low rates I couldn’t believe how precise this plane feels, it gives a similar feeling as the big F3A pattern ships, or a big 100cc IMAC airplane, and when you switch to high rates, you get the crazy high energy 3D flying of a smaller plane, yet this one has the stability of a big plane. There isn’t one maneuver that didn’t make me WOW, knife edge has 0 coupling, harriers and elevators are so easy that it feels like this plane has a gyro, it feels completely locked in and gives that connected feeling that really makes me love this airplane. ”

Being a NEXT Generation PA plane means the XR-61T sustains more energy when flown and by so keeping higher flight speeds which is vital when performing consecutive aerobatics or freestyle maneuvers and allowing sharp and quick turns, resulting in most impressive and breathtaking transitions.

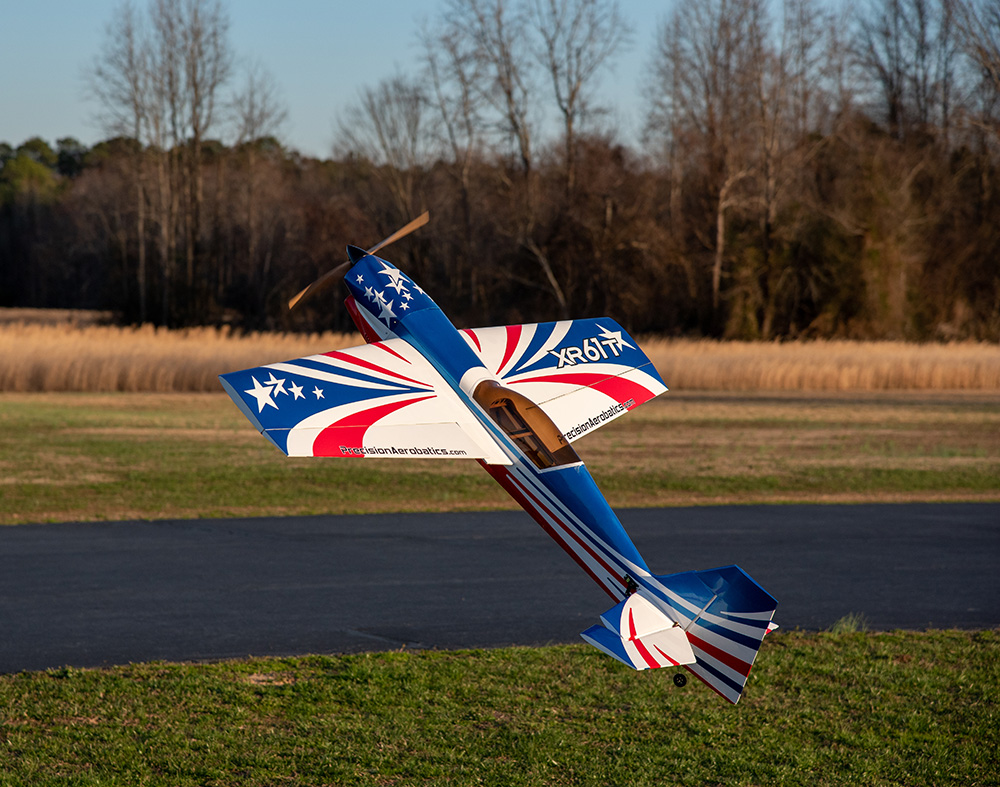

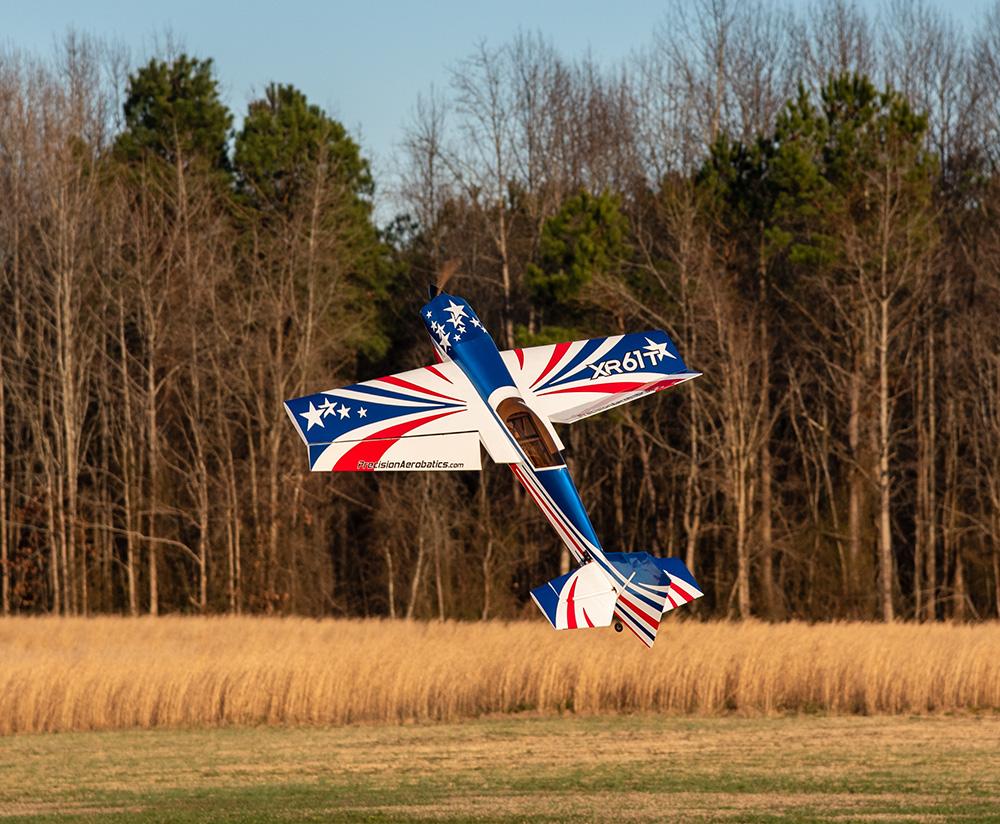

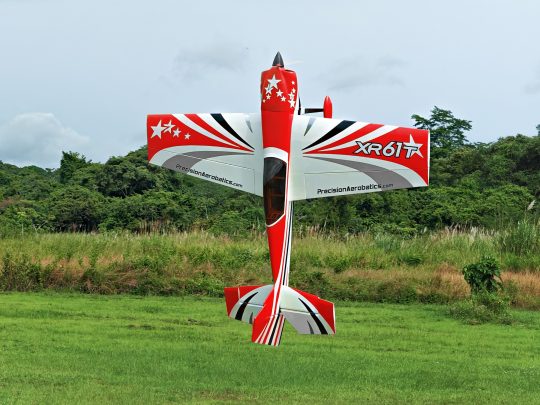

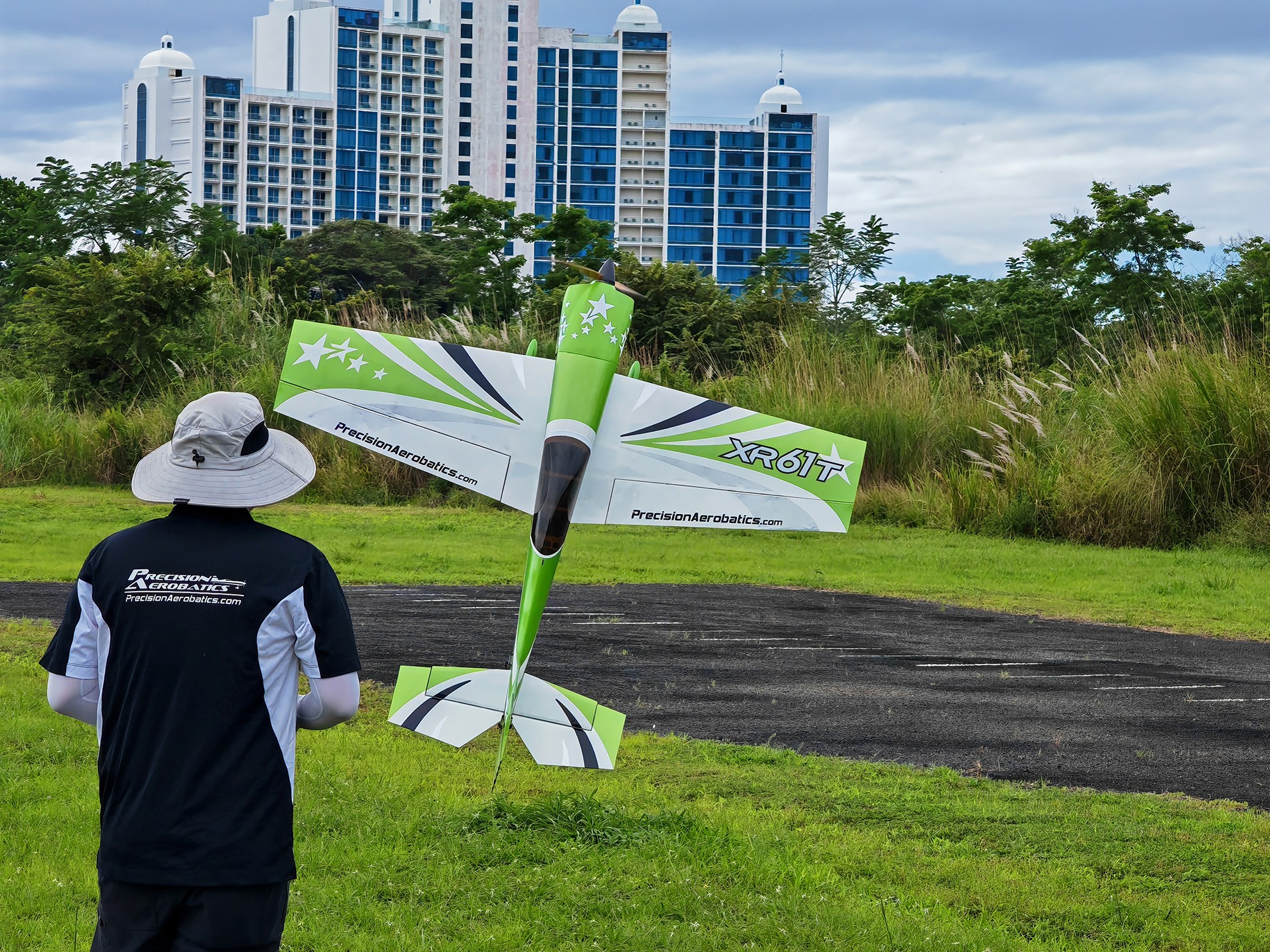

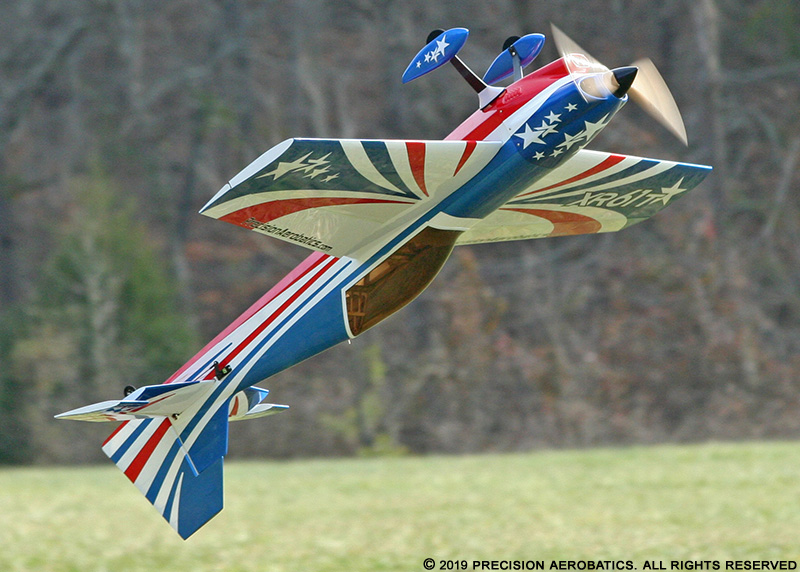

You can expect everything: from crazy tumbles, to super slow harriers at walking pace, and high alpha knife edge without any coupling!  Elevators that need 0 corrections other than small inputs to keep the plane tracking straight. Super tight and easy to do waterfalls, completely flat – flat spins!  Slow rolls the length of the field, super precise snap rolls, completely axial rolls.

This 61″ wingspan design is sure to grant you an unmistaken giant-scale feel: being capable of stable, true and straight lines with unlimited power to recover from any situation.

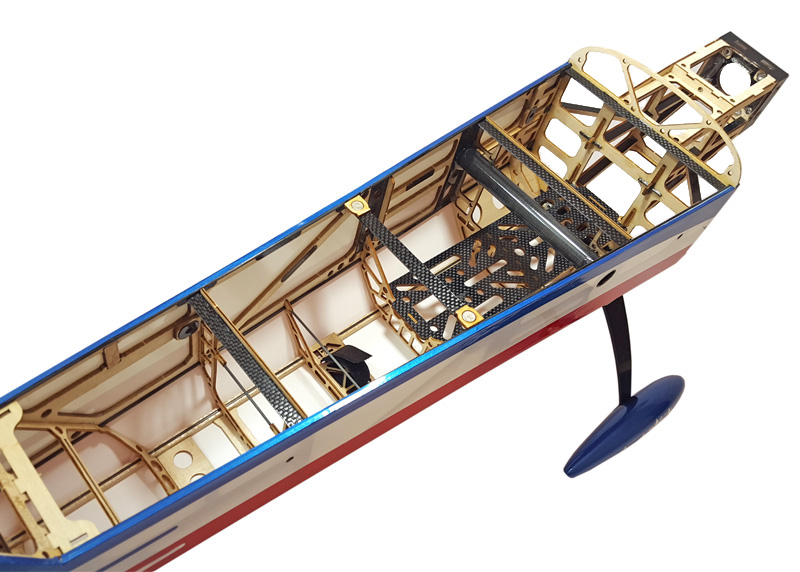

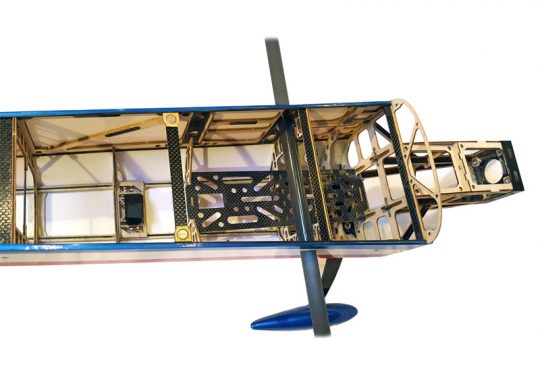

The XR-61T is incredibly lightweight and rigid. Couple its huge control surfaces to its feather-like lightweight and an incredibly low wing loading proves the XR-61T to be a floater that will respond immediately to your stick inputs.



Powered by the PA Thrust 60 24 pole RotorKool® equipped motor and PA Quantum 80 EVO HV ESC with a switching BEC makes the XR-61 extremely responsive providing absolute control, extreme performance and predictability, so you are able to get out of the most difficult situations with ease – and this builds confidence. The XR-61T is powered by two standard 2200mAh-2600mAh 11.1V packs or single 6s PA 2600 mAh 22.v pack, so you don’t need to get a new charger or buy a battery that is dedicated to only one model in your hangar.

The two PA 2600mAh allow for 6 minutes of safe intensive 3D flight. This iPAs package has proven to be the most powerful yet most economical and reliable set up possible. Best of all, you don’t even need to know how to select your ESC, motor or battery or even need to learn how to program your ESC. Everything is done for you and all that is required is just to plug and play. With the iPAs package, we have made it as easy as it gets to get it right the first time when it comes to electrics. Not only does the iPAs package make it easy to get it right, it will give you the identical setup (and potential performance) as our Team Pilots.

The XR-61T is pre-assembled by our skilled staff, each specifically trained in building models using our most advanced FiberFusion® construction techniques to date; using only the finest grade material, all cut by state-of-the-art laser and CNC machines. In order to attain uniform performance for each and every model manufactured, each plane is consistently crafted on highly sophisticated and accurate jigs. Further, each set of wings are individually matched to their fuselage and all receive matching serial numbers (something most factories don’t do even in giant scales production). We test-assemble each airframe before shipping and ensure precise wing incidence, alignment and fit.

Two wing halves are removable making it easily transportable for a model of this size. The wings are joined together with a CF wing tube and CF sleeve that makes the XR-61T a compact and durable aircraft. All flight surfaces are fully airfoiled, and the ailerons are already pre-hinged with the gaps sealed. For maximum aerodynamics, the aileron design and construction in this model is exceptional, made in such a way that the hinge gap is completely sealed as part of the wing, similar to the full size high performance aerobatic planes. This is indeed quite complex to produce: the ailerons fit into the wing trailing edge tunnels being glued and aligned in the factory. Despite the laborious production of this design we insist on producing the ailerons this way, as it ensures perfect aerodynamic flow over the airfoil resulting in maximum efficiency of the control surfaces. To us, it is the aerodynamic performance that counts most.

Following PA tradition this model too gives the word QUALITY a whole new meaning. From the design through the construction, the hardware, level of finish, and  the attention to detail are second to none. Our XR-61T is a TRUE ARF, 99% built for you in our factory. The brief assembly is a joy and most modellers will have it set up in just a few evenings with the help of our video build guide series, PA Builds – now included in the box of the XR-61T.

Specifications

Wing span – 61″ /1550mm
Length – 57″ /1447mm
Flying weight (AUW including batteries & spinner): approx 2028g / 71.5oz /4.47 lbs !!!!
Wing area – 807 sq. in !!!
Wing loading: 12.76oz/sq.ft

Required to complete:

PA Thrust 60 Revo 24 pole outrunner motor
PA Quantum Evo 80A ESC HV SBEC (6.0 / 7.4 / 8.0v)
Two PA Gen2 LiPo 2600mAh 11.1V (3s) 30-60C (or a PA 6s 2,600mAh 22.2v)
Four NXT-200HV digital super-torque metal case and gears servo
VOX 16×7 wooden propeller
2.17″ PA Carbon Fiber Spinner

Note: Vortex Generators and Carbon fiber spinner are not included in the kit

iPAs Combos

Combos include the following:

iPAs Drive:
The drive package includes:

  • XR-61T
  • PA Thrust 60 Revo 24 pole outrunner motor with RotorKool Technology
  • PA Quantum Evo 80A ESC HV SBEC
  • CNC machined precision prop adapter
  • Carbon Fiber X mount



iPAs Power:
The Power package includes

  • XR-61T
  • PA Thrust 60 Revo 24 pole outrunner motor with RotorKool Technology
  • PA Quantum EVO 80A ESC HV SBEC
  • CNC machined precision prop adapter
  • Carbon Fiber X mount
  • 4 of NXT-200HV digital super-torque metal case and gears servo
  • Set of 4 Carbon Fiber extended servo arms specifically designed to achieve the desired linkage geometry for full control surface movement.  Note that the supplied servo arms are designed to match the NXT-200. If you already own these servos, please purchase the servo arms separately to ensure the correct linkages geometry is achieved.
  • Thin gauge twisted light extension lead (made in the same German factory as our giant scale airplanes HD leads). Due to its fine high quality strings it is extremely flexible preventing RF noises and features low internal resistance.
  • 16×7 VOX Wooden propeller



What is iPAs?  – Integrated Performance Airframe-Drive System

NO COMPROMISES, NO MODS, NO HASSLE
THIS IS THE REAL DEAL:   PERFORMANCE OUT OF BOX

WHAT YOU SEE IN OUR VIDEOS IS WHAT YOU GET WITH iPAs

Unlike glow aircraft where it is mostly a matter of bolting on a specific size engine, the options for electric flight gear are simply overwhelming and matching electric gear to an airframe is a complex task for the average modeler and quite often can be very confusing.

Most manufacturers direct their customers to acquire a “compatible” motor and ESC or at best offer a “Combo” package that comprises of an off-the-shelf motor and ESC that would, in theory “fit” within the model’s power requirements.

Surveys we conducted showed that each and every EP models flyer has experienced at least one if not more of the following problems:

  • Unpredictable handling problems caused by reduced wing loading due to oversized motors or battery packs or ancillary gear.
  • Overheating or unwanted ESC cut outs due to over propping or undersized motors
  • Handling problems due to drastic shift in CG and overall weight distribution.
  • Unacceptable flight duration due to inefficient “hot” motors or undersized packs
  • Airframe structural failure due to increased aerodynamic loads caused by oversized drives and packs.
  • Overheating and swelling of battery packs caused by serious drive mismatch.
  • Less than optimum motor performance due to ESC incompatibility.
  • Crashes as a result of servo gear failures caused by excessive loads on the control surfaces or exceeding the maximum airspeed limits.
  • A huge disparity in flight performance observed in the promotional videos against actual aircraft.
  • Premature Motors, ESC and Battery failures or performance degradation over time due to mismatch setup.
  • Gear does not properly fit the airframe and requires modification.

We do not believe modelers should have to live with compromises in flight performances.

Through hundreds of hours of flight testing our airframe designs, we have established that there is a direct correlation between airframe and drive system, which influences the desired aerodynamic performance. This means that airframes and drives should not be treated as independent items, but as one integrated system.

Due to the extreme lengths taken in the design of the airframe, and the unprecedented flight testing period to finally achieve the desired aerodynamic characteristics, we felt a complete solution for this model is necessary. As a result, we have developed our iPAs, PA Integrated Performance Airframe-Drive System.

Each iPAs component has been carefully selected, tested individually and on the airframe itself. Any impacts on the overall flight performance and aerodynamic characteristics have been identified and addressed to ensure that all iPAs components interact in full synergy, as an integrated flight system within the constraints of the design specifications. Each component has then been further refined. The result achieved is a perfectly matched setup, successfully meeting the desired performance criteria.

For the first time, flyers have the unique opportunity to experience the exact aerodynamic performance as envisaged by our chief designer and team of test pilots minus all the guess work and unnecessary expense.

Accessories

Addiction XL / XR-61 / Ultimate AMR 60 power package without airframe

Thrust 60 Revo 24 Poles Motor with RotorKool technology

PA Quantum 70A Pro ESC New version user-selectable HV SBEC (6.0 / 7.4 / 8.0v)

NXT-200HV digital super-torque metal case and gears servo

XR-61 / Ultimate AMR 60 Carbon Fiber servo arms – 4pc

Thin gauge electric extension lead – 2 meter / 78″

VOX 16×7 Electric wooden propeller

VOX 15×10 Electric wooden propeller

PA V4 Lipo 2600mAh 6S 22.2V 25-50c

PA Gen2 LiPo 2600mAh 11.1V (3s) 30-60C

Original Deans Ultra Plugs

2.17″ Carbon Fiber spinner

XR-61 Carbon Fiber Vortex Generators

XR-61 / Katana MX / Extra MX wing bags

Padded Lipo carry bag

Customer Reviews




I just received my new green XR-61 today. Everything looked great as usual, the covering is flawless. The green color is awesome! The pictures don’t do it justice. The reason I am writing you is to thank you for taking the time to personally inspect my airplane. It means a lot to me. I wasn’t expecting it but that just goes to show your great customer support. Thanks again. Your planes are so predicable to fly that it gives me the confidence to push myself. Thus the reason for several replacement airplanes. Because of your quality flying airplanes I am one of the better airplane flyers at our local park area. I live in Salt Lake City Utah and fly with one of the main flying groups here in the Metropolitan area. We just recently built a new flying field which is about 45 minutes from my home out near the Great Salt Lake which will accommodate small or large scale airplanes. I have built two large airplanes and two giant scale airplanes two of the latter are gas powered. With the practice of your airplanes I am finally getting to the point to test the larger airplanes. I will always fly your airplanes no matter what. I can be at several local parks in ten minutes and keep improving on my skills.

Ken Miyake




Plane is amazing! Great work on designing such an amazing product! Its really extraordinary!

Tad Bojanowski




They almost fly themselves i have 4 pa planes

Douglas Stolz


Just a few flights in and im loving this beast.

Austin Jones


Well you guys were right about the XR61, this thing flys amazing! With the AR636 it will knife edge with zero coupling and flys like it’s on rails. My first PA airframe but surely not my last!

Joe Willis


This is my third PA plane and I love your products and support. The how to videos are excellent!

Tim Markley


Can I take the time to congratulate you on the finest quality and most beautifully constructed kit I have ever received. Everything is better than advertised and it is amazing to see the construction and finish quality with fantastic attention to detail and fitment.

Chris Barton


Hi guys I am 86 years old and fly a PA XR-61 great flying plane . You are never to old to fly PA.

Edward Ulrich


Wooooow this thing is sick!!! Successful maiden no coupling and just awesome!!! Thanks PA! Thanks guy for all the input and help. Happy boy over here in Queensland Australia.

Gerhardus Berg


This is best balanced 60″ plane I have (I have 5 others) and most well behaved. It’s always in car when I go to field

Todd Bonack


You won’t go wrong with the XR-61! Super light and agile but very precise. I am not the world class pilot like Daniel or Michael but this plane makes me more confident with the way it performs. With each flight, I am getting it more “dialed in”. One other point, besides great design and great customer service is that it uses the very common and inexpensive 3s2200mah batteries. Think about your battery inventory and replacement costs as part of your purchase decision.

Willie T


It’s been a long wait but I finally have my XR 61 and have flown this awesome machine. So far I’m very happy with its performance. After coming from flying the EF 60” airframes then flying hundreds of flights on my 3 KMXs. I have come to really appreciate how good it is to fly a plane with a light wing loading there are just so many advantages of this. With one of the biggest advantages being that it gives you a slipt second longer to correct any mistakes that you make. I think the KMX is an outstanding airframe.

I’m that happy with the XR61 that I’m going to place an order for another one.

I cannot wait to see what your next design will bring. I hope that the rumours of something bigger are true.

Luke Neilson


Again, thanks for this incredible design. Absolutely nothing like it.

Chris


Hello PA USA,

I have the XR61, great aircraft, love it.

Neal Smalley


Hey Shaun, Hows it goin? Finally flew mine WOW. Kudos you guys nailed it. My first wooden electric and amazing. Still setting it up but flew the crap outta it. Windy as well. Did violent parachutes and I mean violent hehe, snaps you name it and smooth. Love it will for sure buy another PA electric. Will upload videos soon.

Aamir Ali


After a very long wait to get my XR61 I was finally able to fly this awesome machine. I’ve got 7 flight on its so far and cannot wait to put some more on it. Like all PA planes it rules in the low and slow environment and the inverted harriers are so rock solid.

superduke1 @ RCGroups


Lightest loaded 3d balsa I’ve flown. So sweet!

This is a plane that can float around with the best. Huge control surfaces allow for instant flight path changes. I thought my PA Extra 260 was the cat’s meow until flying this one.
Again, the floaty factor is amazing and not many built -up planes can even come close to the wing loading/weight. Period.

Mickel @ RCGroups


Man is the XR-61 good or what!! Good would be a massive understatement it’s unbelievable! I can only speak really in comparison to the ADXL but it does everything that does and MORE! I’m loving pop tops and knife edge spins, they’re by far my favourite maneuvers at the moment. I’m still getting used to the post stall characteristics as it doesn’t fly as slow as the ADXL… Amazing plane!

Junganaught @ RCGroups


the XR61 is amazingly accurate and axial in rolls.. When my wife first saw me flying the XR61 (after many months seeing the KMX) she commented on how ‘clear’ everything looked in comparison. After another couple months flying it, I really started to see what she meant, & I agree totally!! The XR shows up EVERYTHİNG you do, so it can make your flying look crisp and perfect the XR61 performs just perfectly! One-roll circles and loops are absolutely flawless with it.

That’s so true about the durability of PA planes.. I’ve had a couple dozen little bingles with the XR61 so far, and it’s still flying as light and perfect as day 1. (field repair kit consists mainly of thin CA, kicker and scotch tape).

That being said though, the XR blows me away more with it’s ability to get out of trouble than it’s crash resistance! So many times I’ve got away with some VERY sticky situations, and was able to power away when it seemed there was no way out.. the XR seems to be able to defy physics at times, thanks to it’s mega-lightness and ability to change directions at lightening speed!
I was actually thinking it would be cool to make a video showing ‘lucky’ saves with the XR hehe, it seems to happen so often when trying new stuff

Natesh @ RCGroups


This plane is definitively an awesome plane.

thinano @ RCGroups


I’m happy to say I’ve finished my XR-61 and had the first few flights! Wow, it’s a really responsive, agile plane. It made me imagine what it would be like getting in a supercar for the first time and taking it for a spin! It’s very precise and stable, at the same it time it enters every manoeuvre really explosively. KE authority is fantastic & high alpha KE is superb. So are rolling harriers, so locked-in and axial. Everything happens really tight – KE spins/lomcevaks are wild! Harriers, upright and inverted, are really stable, and the XR turns really tight in both.

Natesh @ RCGroups


If you’re choosing between a PA plane vs another company, even Extreme Flight (which has awesome planes), the PA plane will out perform in terms of low wing loading, floaty feel, superb precision, and easier recovery for dumb thumbs. They’re amazingly light

setxws6 @ RCGroups


Hands down the sexiest looking fuselage on the market, the outside now matches the beauty of the construction technique inside.

Poffertjesporem @ RCGroups


Hi buddies… just for sharing last saturday did the maiden of my XR61… it was only a short flight for checking response and give to feeling… not many aerobats… but still have lots of fun… wow…¡¡¡¡ how is true that each PA airplane have a different personality… on this model my first impressions… not sure if it´s right or not but is like a kind of mix between a Katana Mx and a Addiction XL…have almost the top speed, crisp fast aerobats and at the same time still keeps the slow flying, easy 3D of a Addiction… I wonder that going to love a lot this model…

Manolo


Had three flights with the XR-61 and even let Little Stevie have a play. Nearly there on tweaking to suit my thumbs, its much smoother than the XR-52, but still retains a greater flip rate than the Katana MX. Its a big model, but still the Thrust 50 provides a positive pull from the prop hang. Airframe is incredibly quiet, no vibe even in high alpha KE flight, motor box is really stiff!
with 2200 6s seven minutes easily possible.

Dave Wilshere


I bought the XR61 in August, and so far it flies better that I could have hoped. Knife edge, flat spins, harrier, hover, etc, are all at your command with this plane. The instruction manual is very specific and detailed as to how to put it all together. Follow the instructions with equal care and you will be more than happy with the results. The wing bags I ordered with it were also very well done and protect the wings well, even with the vortex generators installed. Great job PA!

Mark Lenfest


Just received my new XR61! This is my third PA airplane. I now own 9 RC airplanes from different manufactures but I find myself flying the PA planes exclusively for the full thrill of flying. There is no need for gyros or other gimmics. If you know the basics of flying and have flown RC airplanes there is no crazy coupling, you just need to fly the plane.

K Miya


Today first flight with the xr61, very good flight feeling, beautiful plane

Günni Hohl



Videos

Build videos

Episode 1:

Introduction


Episode 2:

In this Episode of PA Builds Hans’ covers servo installation and the building of both types of linkages found on PA planes.

Episode 3:

In Episode 3 of PA Builds Hans Kahlert continues explaining the propert techniques and methods of construction your PA ARF. Topics cover include: Installation of the tail, motorbox, and the pull-pull system

Episode 4:

Hans Kahlert continues the build video series with Episode 4.
Topics covered include:
Landing gear assembly
Installation of the Motor, ESC, and air scoops
Cowling alignment and mounting
Installation of the Optional CF Vortex Generators

Episode 5:

Hans Kahlert demonstrates the basics for a good radio setup as well as the methods to properly balance your model and its prop

Soldering Guide:

PA Team Pilot Hans Kahlert continues along the “Builds” series with a special episode covering the proper techniques for soldering electrical components of your model. These methods are applicable for all soldering procedures including servo extensions and battery connectors.

PA recently upgraded the servos that are included with the iPAs packages with better performance in mind. The NXT High Voltage servos are far superior to the Hitec servos that were previously supplied with the models. They are effectively improving the plane performance and as such we felt that its not a good idea to hold on the upgrade of the servos in the iPAs package just because of the servo bays of the models that were just produced was already cut for Hitec. Instead we supply the model with spacers that allow the user to modify the servo bay to fit the NXT servos.

In this video Shaun Vanunu, Designer of PA models is showing how these spacers should be installed

Vox 15×8:  Provides excellent power for sport flying, 3D and precision flying, and yet is still very capable of high energy maneuvers. It has a slightly faster top speed compared to the 16×7, but offers an easier to manage throttle response. It also offers longer flight times.  Note: Because of the decreased prop diameter, it might provide slightly less prop wash in slow 3D, but it’s light weight gives quick spool up for easy exits out of tumbles, blenders and knife edge spins. Excellent prop for any style of flying.



Vox 15×10:  For those specifically looking for high speed / high energy flying and is also very good for windy days. This prop’s strong point is high energy tumbles. It is still very good for slow 3D but you can expect the throttle response to be slightly sluggish in slow 3D, while the higher pitch gives an impressive top speed.



Vox 16×7: The choice for those looking for the best slow and low 3D performance. It provides maximum prop wash, which means the best control possible during slow 3D and rolling harriers. It is a very good all-around prop, with a slightly slower top speed compared to the other props, but offers excellent 3d stability. It is still very capable of high energy. Please note: The larger diameter creates higher gyroscopic forces, which can make for some really interesting tumbles!



Because these 3 propellers really change the way the plane flies, we recommend getting all 3 to determine which one you like best. During our flight testing we kept switching between these 3 props as they are all excellent choices.



Note: It is important to accurately balance your propeller prior to installation as poorly balanced propellers are inefficient and cause vibrations which are detrimental to your model and motor. A video showing how to check and balance your prop is available on our website. Use only propellers that are adequately sized to be within the specified limits of your motor.



Warning: Plastic APC “E” props of equivalent sizes are NOT recommended for any of the PA planes as they generate a lot of vibrations being out of balance. They also flex and will draw much higher amps compared to the Vox props at the same sizes being less efficient. Using them instead of the recommended Vox propellers can lead to a motor box failure!!

Spare Parts

Ultimate AMR 60 / XR-61 / Katana MX Carbon Fiber main landing gear

Ultimate AMR 60 / XR-61 Landing gear cuffs

MX Size Pair of lightweight wheels with wheel axles

MX Size Tail wheel assembly inc. tail wheel

MX size pre-cut carbon fiber wheel pants set

Addiction XL / MX size flames carbon fiber wheel pants

XR-61 Fiberglass cowl

XR-61 Motor mount

Air scoops set Extra MX / Addiction X / XL / Katana MX

XR-61 Tinted canopy / hatch

XR-61 carbon fiber wing tube

XR-61 pull pull set with Kevlar wire complete set including rudder double servo arm

Replacement carbon fiber pushrods spare set (rods only)

German made PA ball links- 4pc

Aluminum CNC machined lightweight clevises Pack of 4

XR-61 Control Horns

XR-61 Tail Feathers

XR-61 fuselage

XR-61 wings set

Replacement hatch latch
