Save money on this combo that includes:
- Speed Controller
- Prop adapter
- Carbon Fiber X Mount
Time until Memorial Day sale ends!
SKU: AC-1890 - Need Help? Contact Us Leave Feedback
Categories: Hot Deals, Ultimate AMR 60 Spare Parts, Thrust / Quantum combos, XR-61 / XR-61T Spare Parts, Addiction XL Spare Parts
Tags: ultimate amr 60, xr-61, addiction xl, T60, T60 Revo, thrust 60r, thrust60r, thrust60

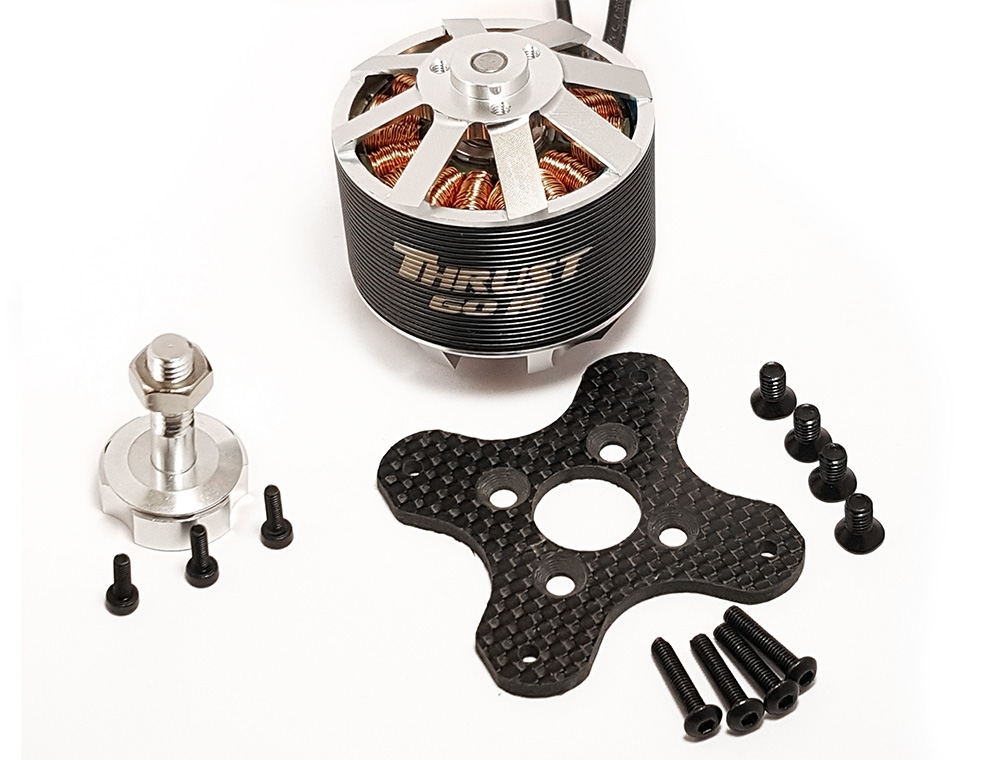

This combo includes:
Thrust® 60 Revo 24 poles motor with RotorKool® technology
Quantum EVO 80A ESC New version user-selectable HV SBEC (6.0 / 7.4 / 8.0v)
Pre-soldered bullet connectors
CNC Machined Precision Aerobatics prop adapter
Carbon Fiber X mount
Thrust 60 Revo 24 poles motor
The new Thrust 60 Revo utilizes our all-new RotorKool® technology engineered by Precision Aerobatics.
Months of hard work were invested in the engineering of this motor using many years of experience designing and producing our extremely successful line of Thrust® brushless motors (since 2006).
Many hours of long and tedious testing were required to reach the very high standards we aimed for with this all new motor. We tested multiple style of rotor fan blades and angles to achieve the maximum efficiency. Months of AutoCAD engineering were needed to reduce every bit of weight without sacrificing the integrity of the motor.
We overcame the CNC production challenges and the result is a state of the art integrated cooling fan incorporating angle and pitch on the inner surfaces.
We raised the bar once again making the lightest and most powerful motor in its class! We nearly doubled the poles which translates into a lot more torque (more magnets = more torque!!), minimized the gap between the magnets and stator which boosts up torque and thrust, specially designed front fan rotor blades that creates a vacuum of air, channeled between the magnets and stator then expelled through the end bell, keeping the motor cool to withstand hard 3D flying and abuse. We increased the stator lamination (0.2mm) to increase efficiency similar to that of very expensive F3A motors.
- Incorporates our latest generation RotorKool® technology
- 24 pole motor – (more magnets = more thrust!!)
- Aluminum precision CNC machined state of the art integrated rotor fan and rear end bell
- High Velocity Force Cool Ventilation (HVFCV)
- Triple oversize, high quality NMB Japanese bearings
- High temperature and powerful neodymium magnets
- Computer balanced rotor to eliminate vibrations
- Extreme thrust with high efficiency
- Hardened stainless steel motor shaft
- Silicone steel 0.2mm tight laminated stator for maximum efficiency!
- Smallest air gap between the stator and curved neodymium magnets – significantly boosting torque and thrust
- CNC machined anodized motor can with Micro ridges – increases surface area and serve as radiators to further boost thermal dissipation
- Highest quality materials and components used in the manufacture
- Lightweight aluminum CNC machined propeller adaptor
- HD aluminum X-mount to fit most other brand planes
- CNC machined rigid, lightweight carbon fiber X-mount to fit PA planes
- Quality anodized socket head cap screws
- HD insulated copper cables with pre-soldered gold bullet connectors
- Exceptionally low resistance windings for efficient cool operation
|Mounting Bolts Dia.||M4 +M3+M2.5|
|Recommended ESC||Quantum 80 Evo|
The development of our PA Thrust® motors has followed our traditional design philosophy employed in our aircraft; which is doing things better. Thrust® 60 Revo motor is one of the coolest running high performance, high-torque and high efficiency brushless motor ever produced to date. The design incorporates our latest generation of RotorKool® which keeps the stator core material, the low resistance windings, highly permeable stator plates, high quality NMB Japanese triple bearings and powerful neodymium magnets at optimum operating temperatures.
iPAs Static Bench Test
iPAs Gear: Thrust 60 Revo, Quantum 70 Pro (HV), 2x PA V4 2600mAh 11.1V 25-50C (6 cells)
|Prop Type||Battery Voltage
NOTE: During 3D flights, instant thrust at full power for a few seconds is required to get out of a maneuver. We based our static bench tests on this fact and took each reading after a few seconds at full power. We made multiple runs with each propeller to establish our final readings. Please note that every bench test reading will vary depending on your testing equipment, ESC set up, ambient temperature, altitude, duration of run, batteries condition and more.

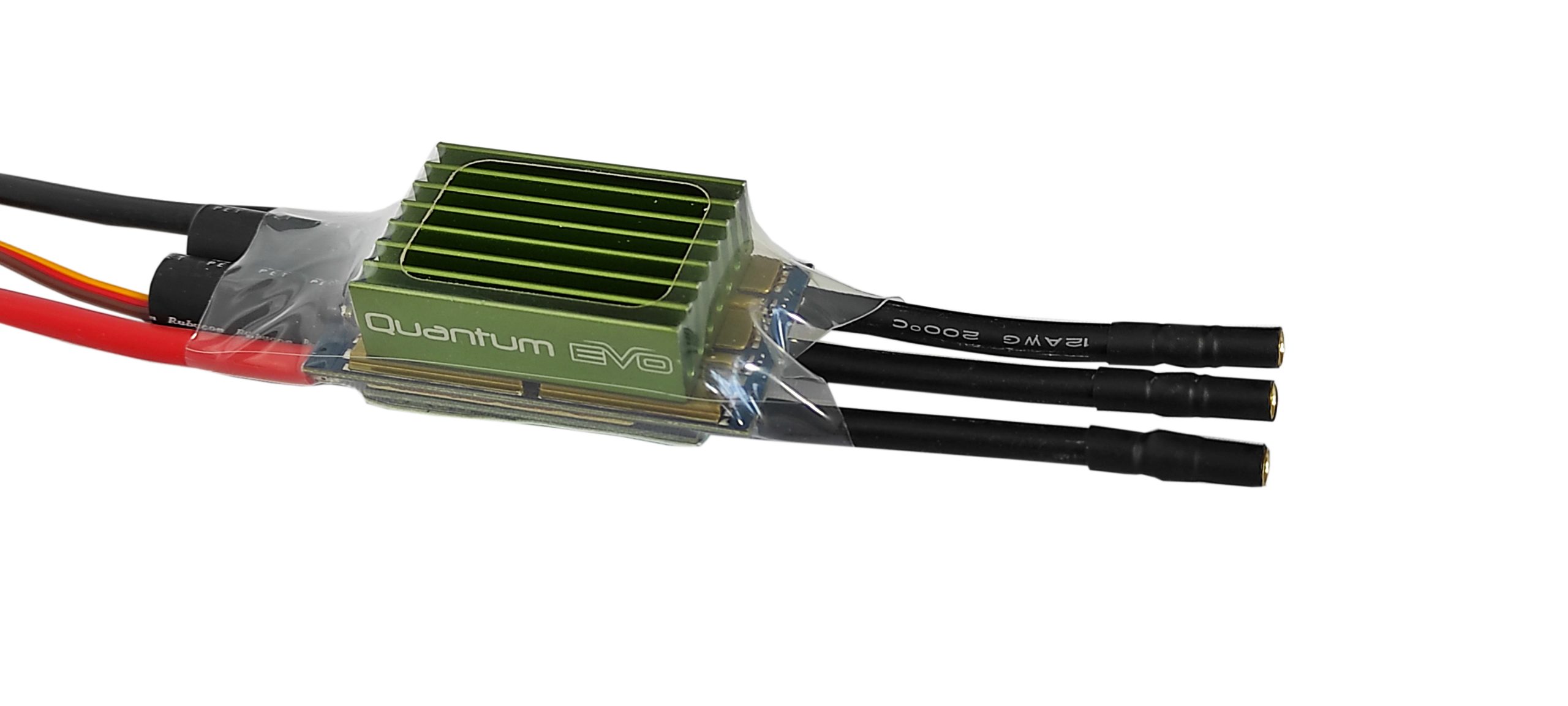

Quantum EVO 80A Pro ESC New version user-selectable HV SBEC (6.0 / 7.4 / 8.0v)
This is the latest edition of our Quantum Pro Electronic Speed Control (ESC) featuring a high output SBEC capable of delivering 6v, 7.4v or 8.4v. It ships preconfigured for plug-and-play use with Thrust brushless motors. Years of R&D and experience has culminated in this extremely reliable, efficient and robust ESC.
CNC machined propeller adapter
It may seem like a minor component installed in your high performance aircraft. However we find it extremely important since the prop adapter affect the final thrust and performance of your motor. Most prop adapters on the market are off center creating excessive variations which lead to glue joint in motor-box to come loose. In high end RPM they cause the motor excessive heat thus reduce efficiently and power.
About Thrust Motors
Thrust® motors development from 2006
For a number of years, modelers have accepted the notion that in order to attain top notch performance, one has to run outrunner motors to the extreme limit with the risk of overheating. In fact, heat has become inevitable part of contemporary high performance brushless motors and nothing much could be done about it. However heat is one of the main contributors to premature magnet deterioration and bearing failures leading to permanent performance degradation over time or even dangerous and catastrophic destruction due to thrown magnets. In order to avoid unwanted heat damaging the motor, some modelers have resorted to over sizing their motors. This in turn increases the all up weight and thereby affecting wing loading and flight performance. There seems to be a no win situation and the only way to enjoy this wonderful hobby is to accept this seemingly hopeless compromise.
Motor power has always been quoted in Watts, but heat is Watts too. So, the real question is: Are all the quoted Watts being used to drive the motor, or is there a significant amount of Watts wasted in heat? To answer that just touch your motor immediately after flight and if it is hot enough to burn your finger, THAT is where the Watts went as opposed to driving your airplane, therefore, quoted watts are essentially meaningless when evaluating a motor (because it does not indicate the efficiency). The propeller’s RPM is the most important performance factor. We at PA understood that without effectively eliminating heat, all the good motor attributes already available in our motors and as well as others, contributes very little to the motor’s overall performance in service because heat building up under load means loss of efficiency and eventually leads to detrimental effects in the electro-magnetic properties of the motor. These effects cause significant deterioration of power, thrust and eventually flight duration.
We set a target to make a high performance, extreme thrust motor, which is light, runs cool and efficient for maximum flight time, is made of highest-grade materials and features precision engineering and machining. This led to rethinking the design of current brushless outrunners, their strengths and limitations and thus led to the development of a completely new line of PA Thrust® motors.
About the design from 2006
Some of the common brushless outrunner manufacturers have gone as far as incorporating high temperature magnets and exotic adhesives to circumvent the effects of the heat problem. There are myriad of crude and inefficient cooling techniques ranging from a multitude of holes, to fins, to bolt-on fans and impellers.
Unlike those, the PA Thrust® cooling design took a complete departure in the current thinking by engineering a High Velocity Force Cool Ventilation (HVFCV) into the rotor as well as taking full advantage of thermodynamic properties of the stock material itself. HVFCV is achieved through a set of solid metal turbine impeller blades painstakingly CNC milled as an integral part of the rotor assembly, which not only provides the positive force cool ventilation by drawing fresh cool air through the stator and magnets, but also doubles up as a heat pump to first draw excess heat from the rotor assembly itself and then act as a heat exchanger by expelling it through the air stream contacting the solid metal turbine blades as it spins at high velocity.
Micro ridges, intentionally CNC cut into the rotor, further multiplies the end bell’s surface area and serve as radiators to further boost thermal dissipation achieving unparalleled cooling and henceforth having the ability to swing larger propellers than other conventional outrunner motors of similar class while remaining considerably cooler and more efficient. There is more to the “Cool” look of the CNC exterior casing than meets the eye, and looks can be deceiving. Under the hood, is where serious engineering comes into play.
With only the highest quality materials and components used in the manufacture, the PA Thrust® motors are manufactured with the tightest tolerance making it possible to maintain the smallest air gap between the stator and curved neodymium magnets, significantly boosting torque and thrust. The relatively silent and vibration-free operation of the motor is a testament to the tight tolerance manufacturing regime we have adopted specifically to harness the maximum power produced by the motor (within the limits of today’s technology) for the sole purpose of swinging the prop. This allows the motor to swing propellers of at least one size larger than any contemporary motor in its class while running cool and maintaining maximum efficiency.
